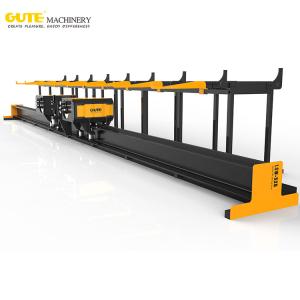

12m Automatic CNC Rebar Bending Machine

Brand Name : GUTE

Model Number : LSW-32

Certification : CE,ISO 9001:2000

Place of Origin : CHINA

MOQ : 1set

Price : 22000-27000USD/SET

Payment Terms : L/C, T/T, D/P, D/A

Supply Ability : 200set/month

Delivery Time : 20 work days

Packaging Details : plywood case

Gas source wor : 0.8MPa

Maximum bending angle : -120°~180°

Longest stirrup : 10.8m

Minimum margin spacing : 740mm

Head movement speed : 0.5-1m/sec

L*W*H : 12m×2m×1.6m

Contact Now

12m Double Head Cnc automatic Rebar Stirrup Bending machine rebar bender

32mm Double Head Vertical Cnc Rebar Stirrup Bending machine rebar bender

01

Overview

The can be used in the construction of high-speed, road and bridge, house construction, subway and other projects. The raw material is 10-32mm bar material. It can process a variety of graphics. It adopts PLC control. The processing accuracy can be controlled within ±2mm. Intelligent CNC Operation reduces labor intensity and labor cost. The system can store 100 shapes, which can be called during processing. Innovative fixture design makes it more convenient to bend horseshoe tendons.

02

Scope of application

Mainly used in the construction of high-speed, road and bridge, housing construction, railway and other projects.

03

Device parameters

rated power 18KW
Air source working pressure 0.8MPa
Maximum bending angle -120°至180°
Maximum bending angle 10.8m
Minimum curved edge spacing 740mm
Moving speed of machine head 0.5-1m/sec
Fastest bending speed 72°/sec
total weight 4.8t
Average power consumption 5KW/H
L*W*H 12m×2m×1.6m
Diameter 10 12 14 16 20 22 25 28 32
Quantity 7 6 5 4 3 2 1 1 1 ±≤90°
Movement Control Servo
Bending Control Servo
Power source pneumatic
04

Equipment advantages

12m Automatic CNC Rebar Bending Machine

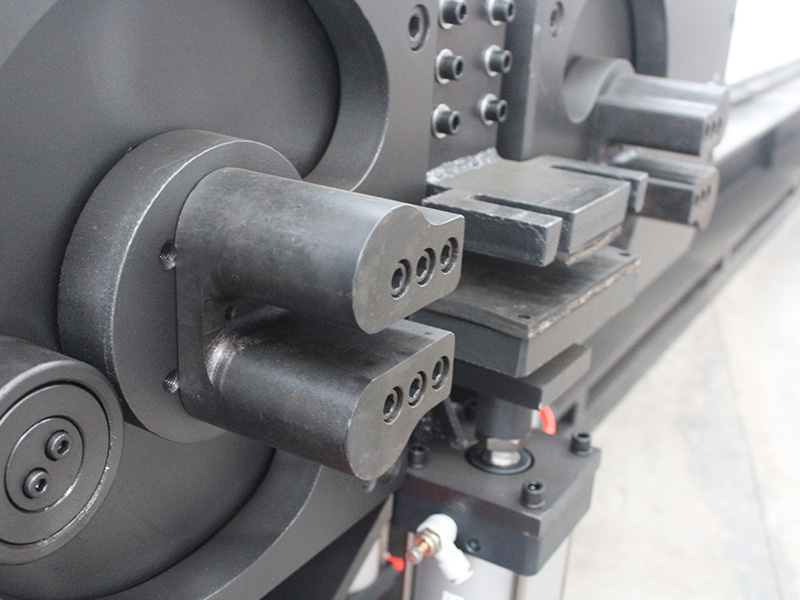

The forming wheel can be customized to bend complex steel bar patterns.

12m Automatic CNC Rebar Bending Machine

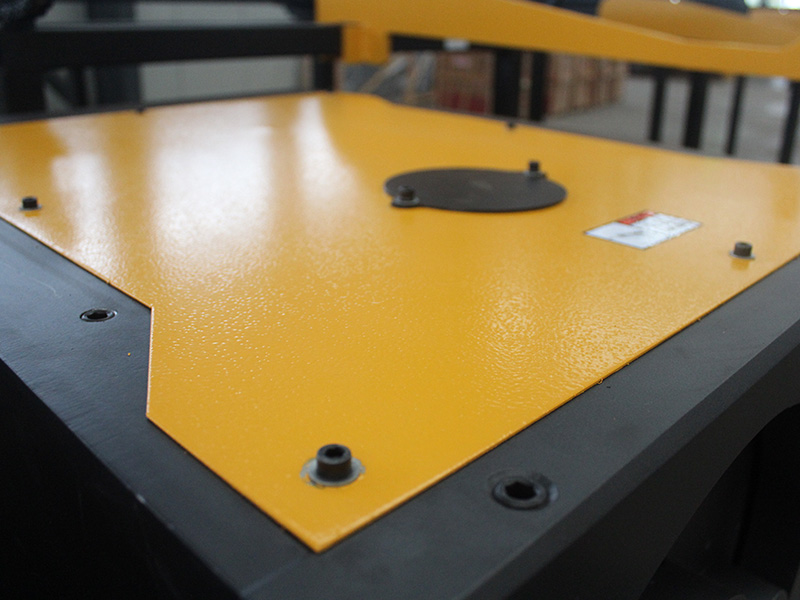

The all-steel welded box body is strong, durable, and will not deform for life.

12m Automatic CNC Rebar Bending Machine

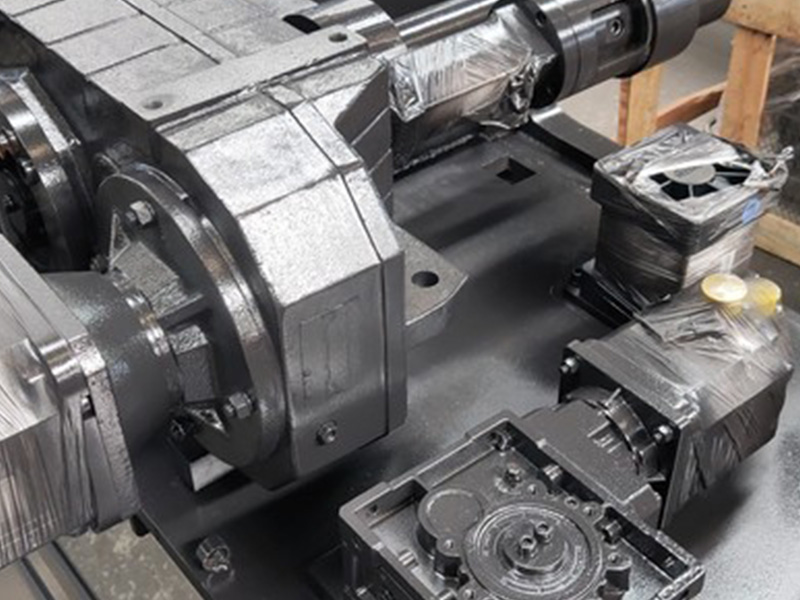

Using rack drive to ensure accurate product size.

12m Automatic CNC Rebar Bending Machine

The bending and walking are all controlled by servo motors, the bending angle is accurate, and the forming size is accurate.

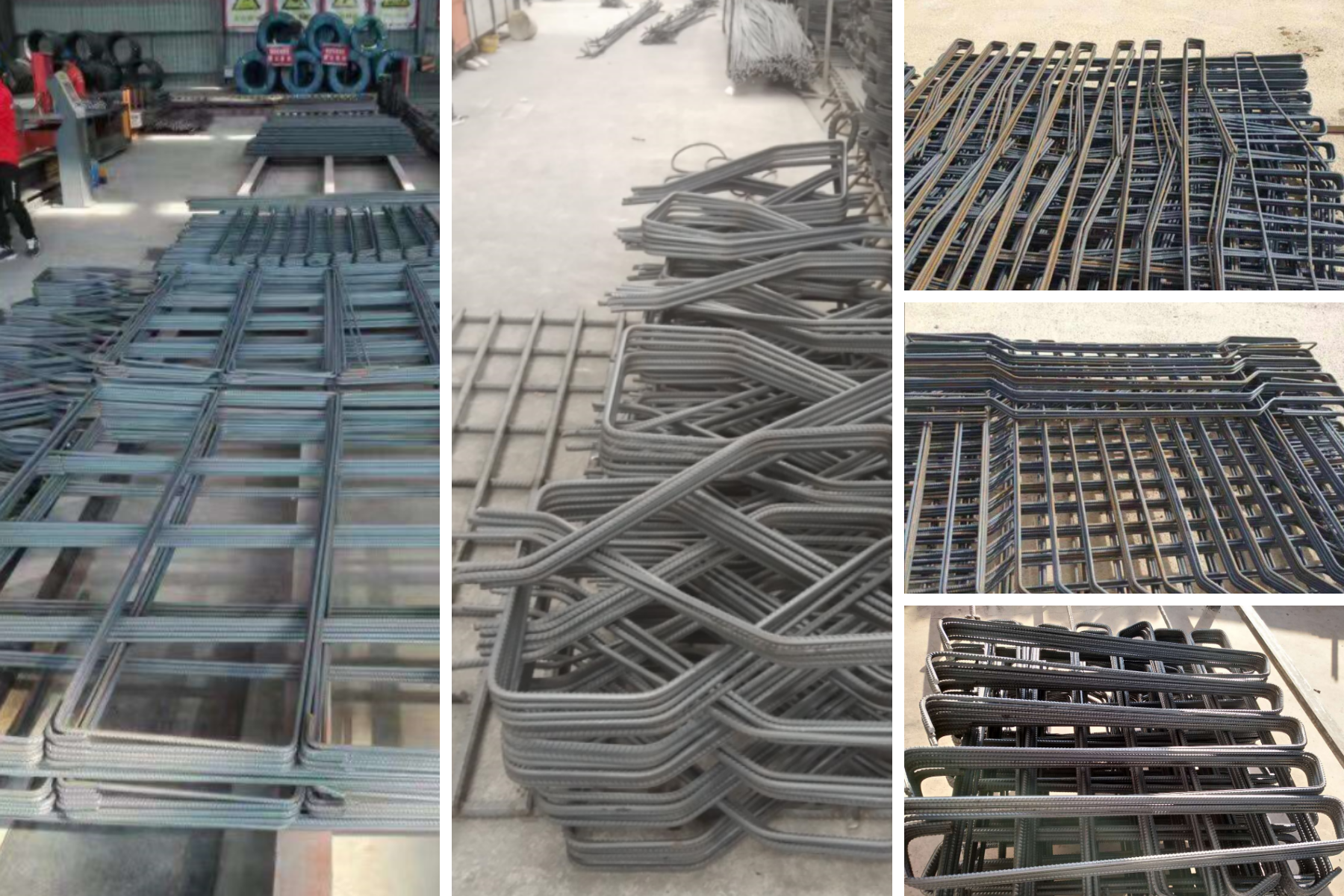

Finished product

12m Automatic CNC Rebar Bending Machine

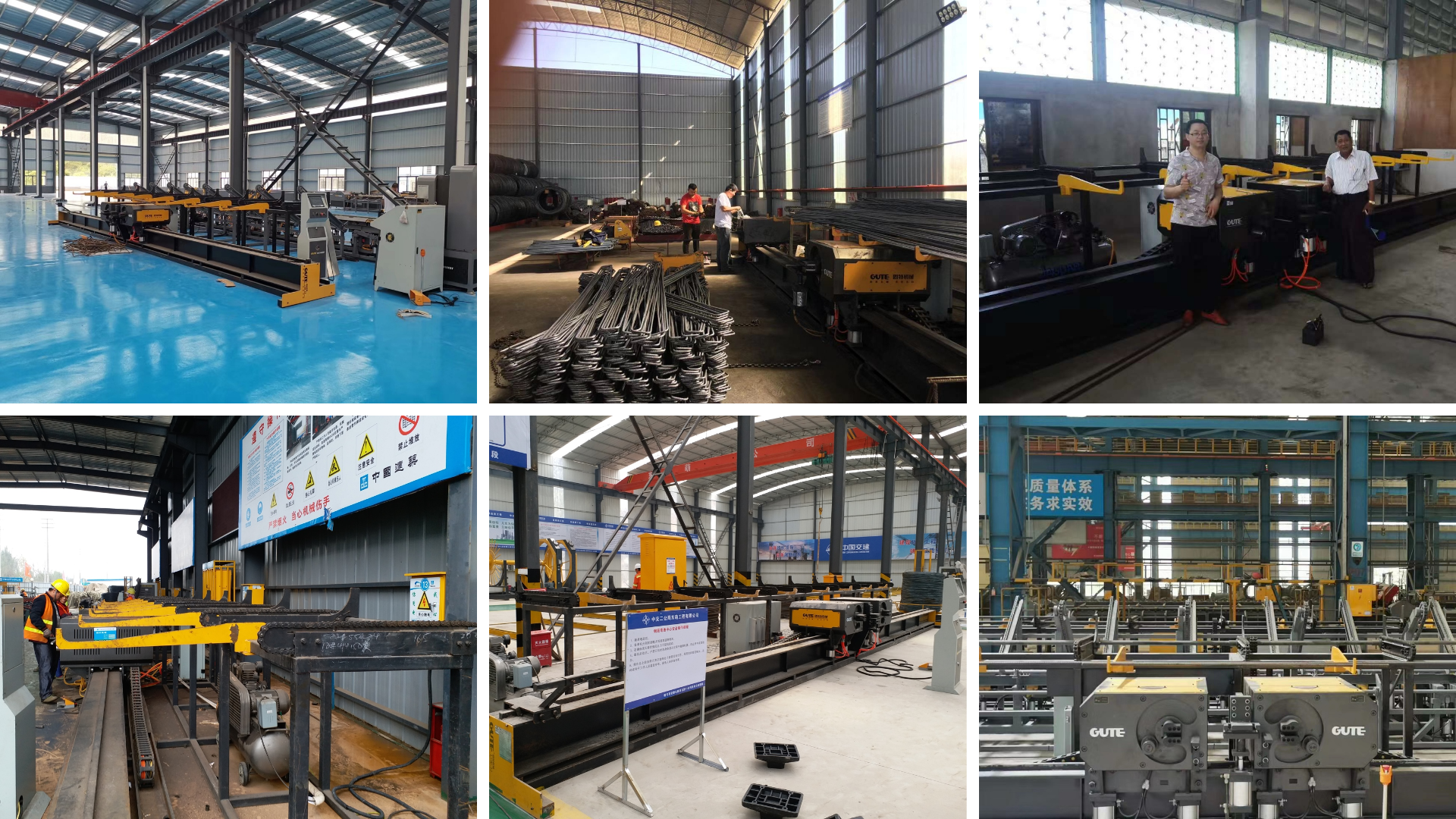

Case

12m Automatic CNC Rebar Bending Machine

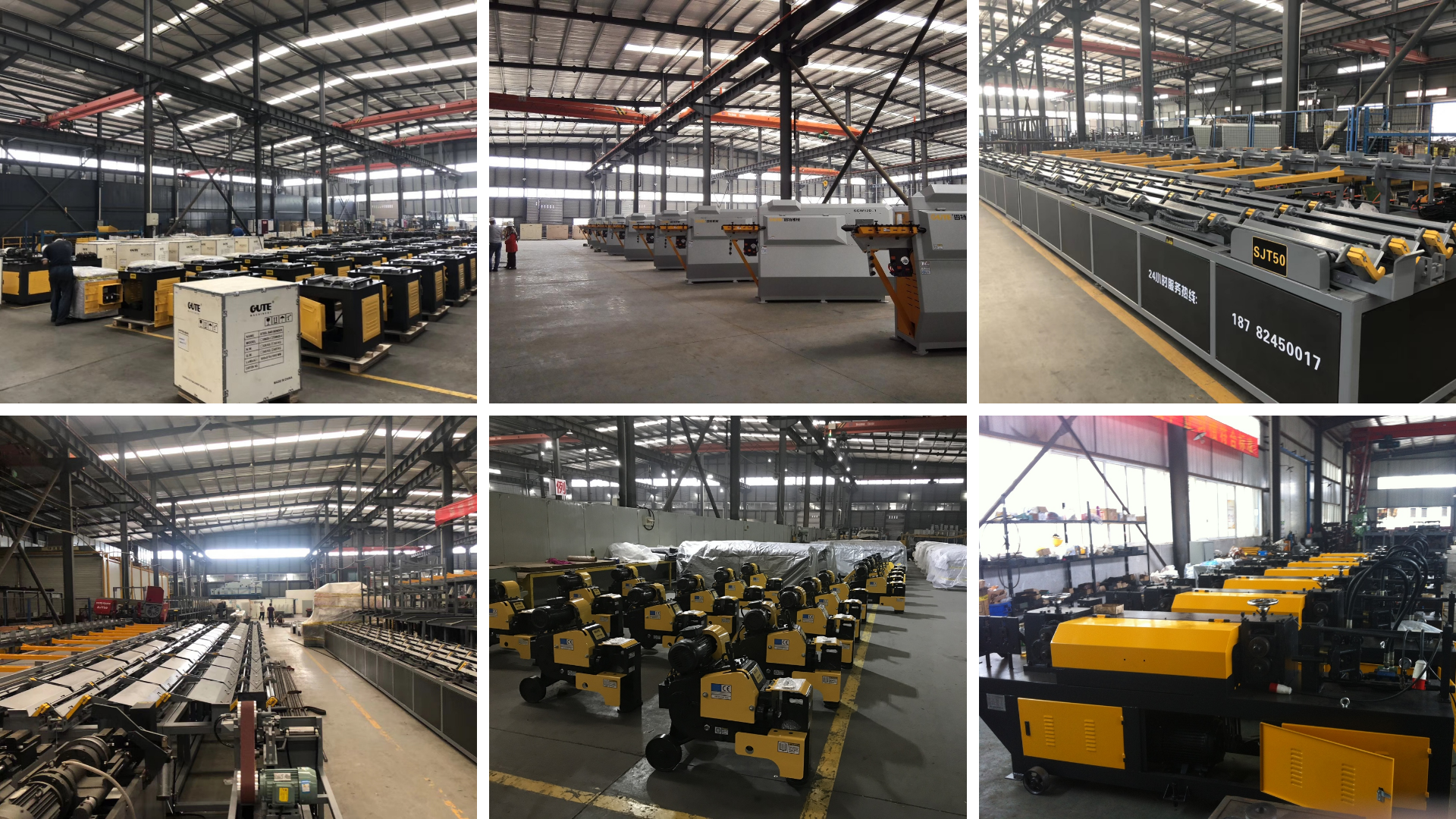

Our factory

12m Automatic CNC Rebar Bending Machine

12m Automatic CNC Rebar Bending Machine

12m Automatic CNC Rebar Bending Machine

Our service

12m Automatic CNC Rebar Bending Machine

Certification

12m Automatic CNC Rebar Bending Machine
